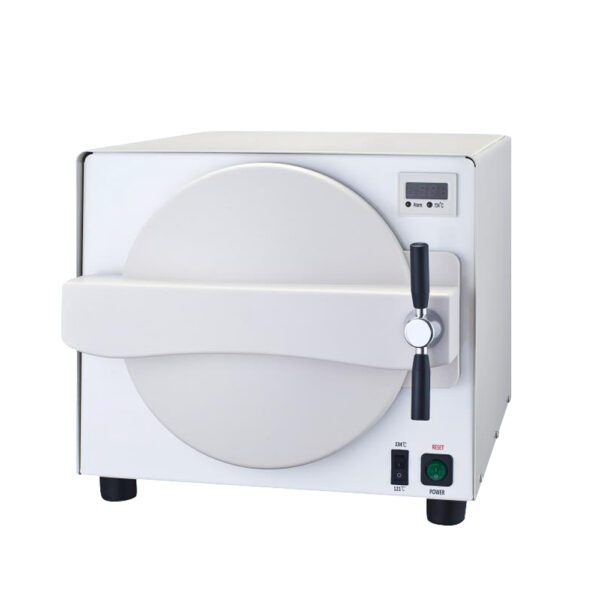

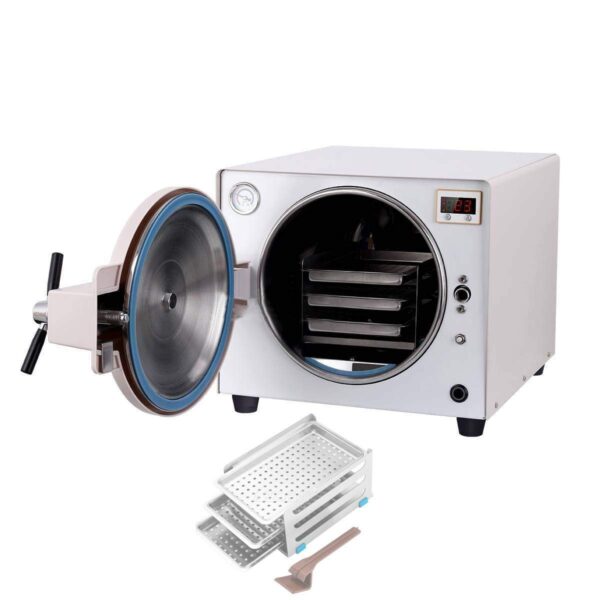

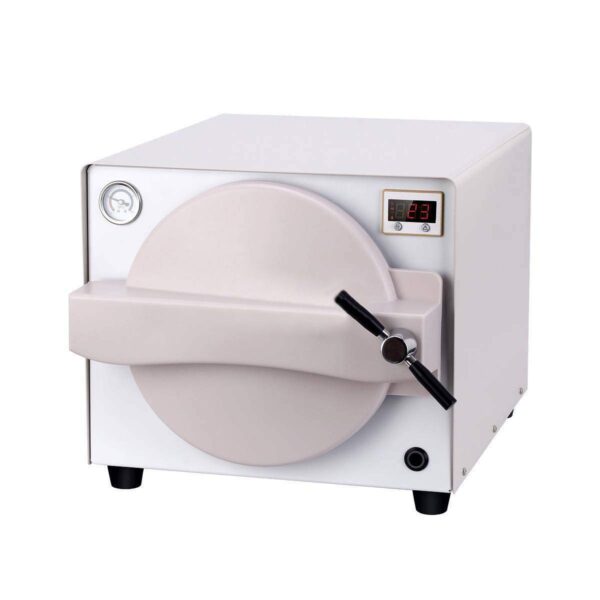

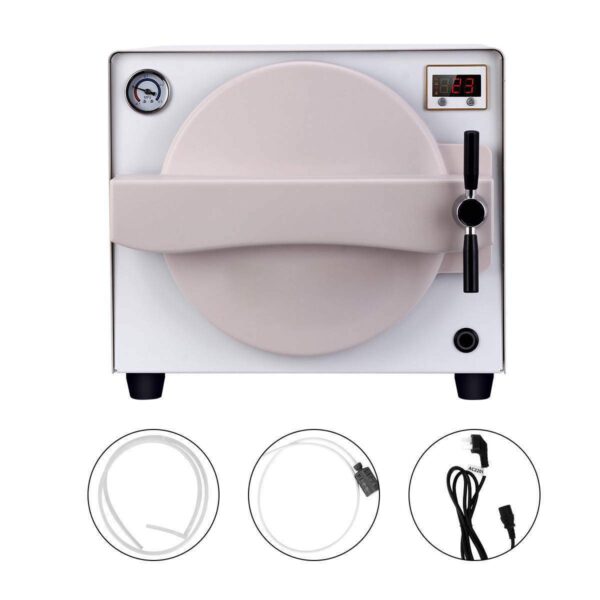

18L Table Top Dental Steam Sterilizer Autoclave | TR250N

18L Table Top Dental Steam Sterilizer Autoclave SPECIFICATION Sterilization Class CLASS N Sterilizing Temperature 122℃ / 251.6℉ & 132℃ / 269.6℉ Chamber Dimension Ø250 x D350mm / Ø9.84″ x D13.78″ Display High-light LED tube display Input 110V, 60HZ, 900VA Control Precision Temperature: 1℃ / 33.8℉ Pressure: 0.1bar Safety System Relief valve Hand lock door Pressure or temperature over load protection Alarm system Tray Holder 3 layers tray Chamber Medical stainless steel 304 Max working pressure:2.3bar Min working pressure: -0.9bar Max temperature: 145℃ / 293℉ Dimension 56cm x 39cm x 36cm / 22″ x 15″ x 14″ Weight 25kgs / 55lbs Operation Temperature 5～40℃ / 41℉～104℉ Noise <50db PROGRAM PROGRAM Temp. Pressure Sterilization Time 134℃/ 273.2℉ 2.2bar 5mins 121℃ / 249.8℉ 1.2bar 25mins Application Field Dental Clinic, Hospital, First-aid Station, Laboratory, Veterinary hospital, Beauty Parlor, Tattoo House… Quality System Quality System No. Quality System Name ISO 9001 Quality management systems—Requirements ISO 13485 Medical device-Quality management systems-Requirement for regulatory purposes Certification ISO 9001 Steam Sterilizer CE Sterilizer Chamber CE Application Directive and Standard Directive or Standard No. Directive or Standard Name MDD 93/42/EEC Medical Device Directive PED 97/23/EC Pressure Equipment Directive EN 61010-1 Safety regulations for electrical measuring, controlling and laboratory Devices- Part 1: General requirements EN 61010-2-040: Safety requirements for electrical equipment for measurement, control and laboratory use —Part 2-040: Particular requirements for sterilizers and washer-disinfectors used to treat medical materials EN 13060 Small steam sterilizers EN 61326-1 Electrical equipment for measurement, control and laboratory use – EMC requirements Product Information Technical Detail Model TR250N Basic model Chamber capacity Ø250XD350mm / Ø9.84″ x D13.78″ Inside capacity 18 Liter Outside size (L x W x H)CM 56 x 39 x 36CM / 22″ x 15″ x 14″ Packing Size (L x W x H)CM 63 x 46 x 41CM / 25″ x 18″ x 16″ N.W:25KGS / 55lbs; G.W: 26KGS / 57lbs Sterilize temperature 122℃& 134℃ Sterilize pressure(Mpa) 0.12Mpa & 0.22Mpa Sterilize time 25Min& 6Min Hearter 900W Material quality Stainless steel #304. Boiler chamber surface with burnish. Suface deal with The machine foundation and the shell use high temperature baking varnish processing Electric current-110V 8A Safety equipment *Pressure adjustment:adjust the inter pressure.If over standard value automatic vent. *Avoid overheat protect device:When inter temperature overheat,power break electric current automatically. Disinfection complete action Automatic discharge of water and steam Additional Information ADVANTAGE 1. It has an normal open valve to release air pressure automatic. 2. This autoclave will drain water automatic after every cycle. 3. Water level sensor can effectively avoid the heater burned. 4. The digital display can show temperature instantly. 5. Error code alarm system can make users judging problem easily.
