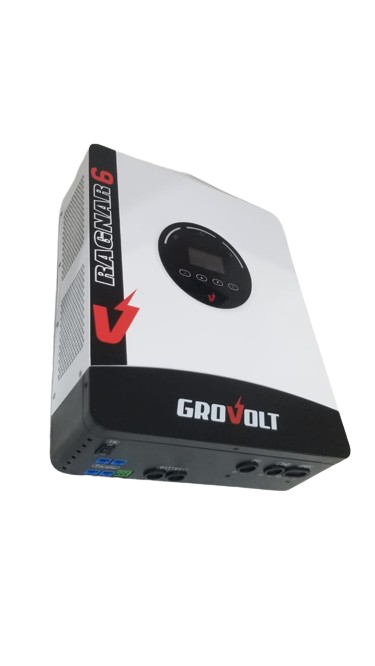

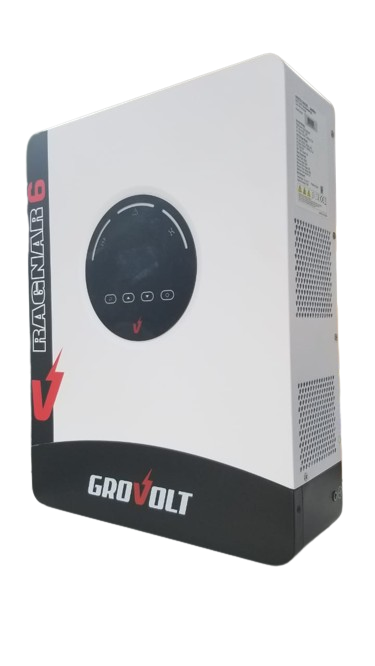

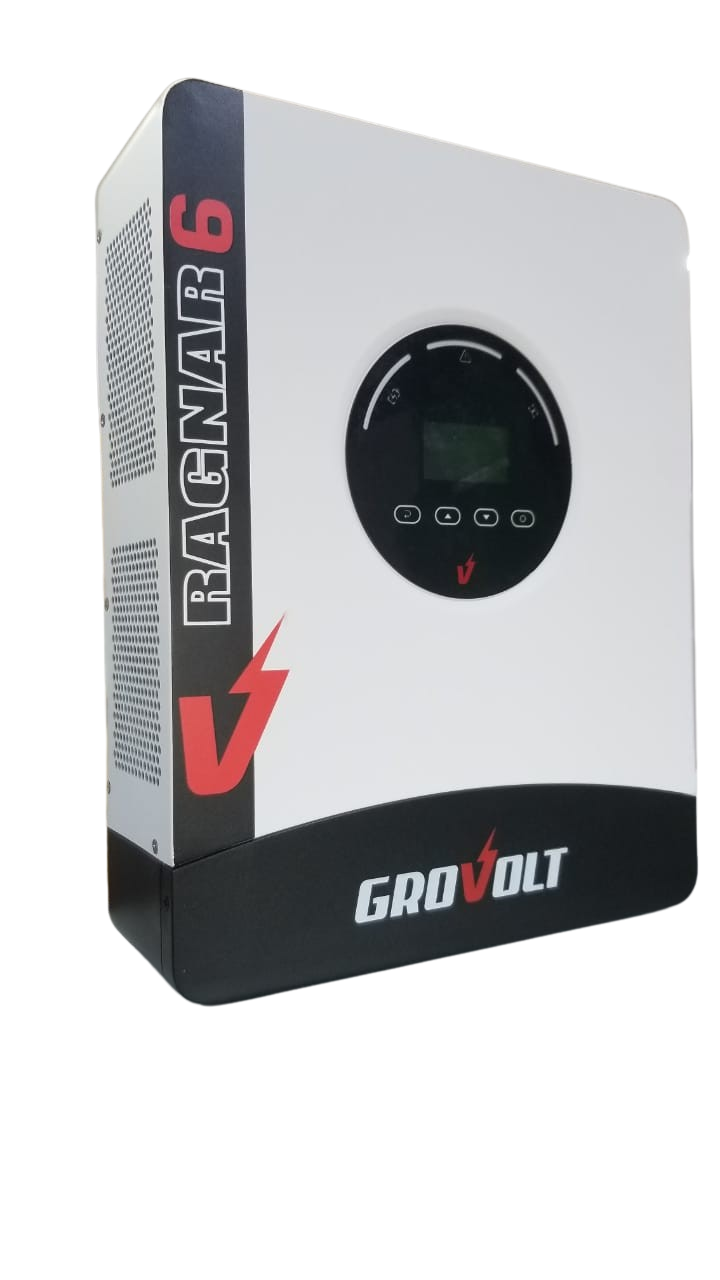

Grovolt Ragnar 6 – 6KVA Hybrid Inverter

Specifications Model – Gl-R48-6KW-GO Rated Output Power – 6000VA/6000W Nominal DC Input Voltage – 48V Input Voltage Waveform – Sinusoidal utility of generator) Nominal Input Voltage – 230Vac Low Line Voltage Disconnect – 90Vac 3V(For Home Appliances) 170Vac 3V(For Computers) Low Loss Voltage Re-connect – 100Vac 3V(For Home Appliances) 180Vac 3V(For Computers) High Line Voltage Re-connect – 270Vac 3V Max AC Input Voltage – 280Vac 3V Nominal Input Frequency – 50Hz/60Hz(Auto detection) Low Line Frequency Disconnect – 40 1Hz Low Line Frequency Re-connect – 42 1Hz High Line Frequency Disconnect – 65 1Hz High Line Frequency Re-connect – 63 1Hz Output Voltage Waveform – As same as input waveform Output Short Circuit Protection – Line mode: Circuit Breaker Battery mode: Electronic Circuits Efficiency (Line Mode) – >95% (Rated R load, battery full charged) Transfer Time (Single Unit) – 10ms typical (UPS); 20ms typical (Appliances) Battery Type AGM- Deep Cycle, Gel/Tubular/Lithium Transfer Time (Parallel) – 50ms typical Pass Through Without Battery – Yes Max . Bypass Overload Current – 40A Max . Bypass Input Current – 50A Max . Inverter/ Rectifier Current – 27.3A/6000W Solar Charging & Grid Charging Max. PV Open Circuit Voltage – 500V PV Voltage Range – 85V-450V Max. Input Power – 6000W Max. Solar Charging Current – 120A Max. Charging Current (PV Grid) – 120A Max. Input Current – 27A Min. Startup Voltage- 80V
