Propex HS2211 Gas Heater Kit – Underslung Mounting for Transit Custom and VW Crafter Single Outlet – Digital Controller Gas Only 2Kwatt – New Product

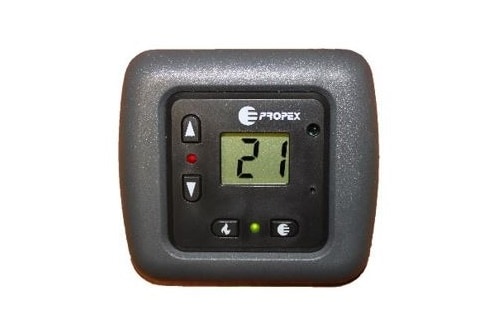

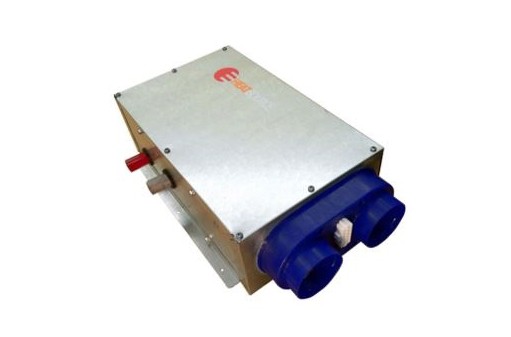

Propex HS2211 Gas Heater Kit – Underslung Mounting for Transit Custom and VW Crafter Single Outlet – Digital Controller Gas Only 2Kwatt – New ProductThe Propex Heatsource HS2211 heater delivers automatic, thermostatically controlled blown-air heating and runs on propane or butane gas.Propex designed the HS2211 for under-vehicle mounting. Multiple bracket options support a wide range of mounting positions and orientations, which expands installation possibilities beneath floors or between chassis rails.Simple, intuitive controls make heater operation straightforward, while a continuous feedback loop allows quick and easy system diagnosis.Installers typically mount the unit beneath the floor or between the chassis rails of vehicles and caravans, using vehicle-specific mounting kits.The combustion pipes route to the side of the vehicle. Thanks to the heater’s low-profile design, no pipes or snag-prone components sit exposed, which preserves ground clearance.The system ducts heat to one or more outlets using tough, highly flexible 60 mm ducting, delivering warmth to your chosen locations inside the vehicle.To minimise heat loss, installers should route any external ducting inside insulated ducting.Specification:Maximum dimensions Height: 230mm, Width: 157mm, length: 430mmWeight Under-floor Installation 7.7kgGas Butane 28-30mbar – CAT I3 (28-30/37), Butane/Propane 30mbar – CAT I3B/P (30)Propane 37mbar – CAT I3p (37)Gas Consumption (M) 1 50g/hClassification of Heater Type: C53 (Fanned) Normal InstallationC13 Vehicle In Motion InstallationNominal Heat Input Gas 2.0KwBattery Supply:Nominal voltage 12V d.c.Operating range 10.0V d.c. min. to 15V d.c. max.Maximum current d.c. gas operation: 1.7 Amps (0.01Amps on standby)Dry Storage Temperature -20°C to 70°CDuct/Flue Dimenions:Hot Air Duct Diameter 60mm IDFlue Diameter 22mm IDMaximum Exhaust Flue Length 2mMinimum Exhaust Flue Length 0.75mMaximum Combustion Air Flue Length 2mMinimum Combustion Air Flue Length 1.0mThis item should be installed and tested by a trained LPG professional.
